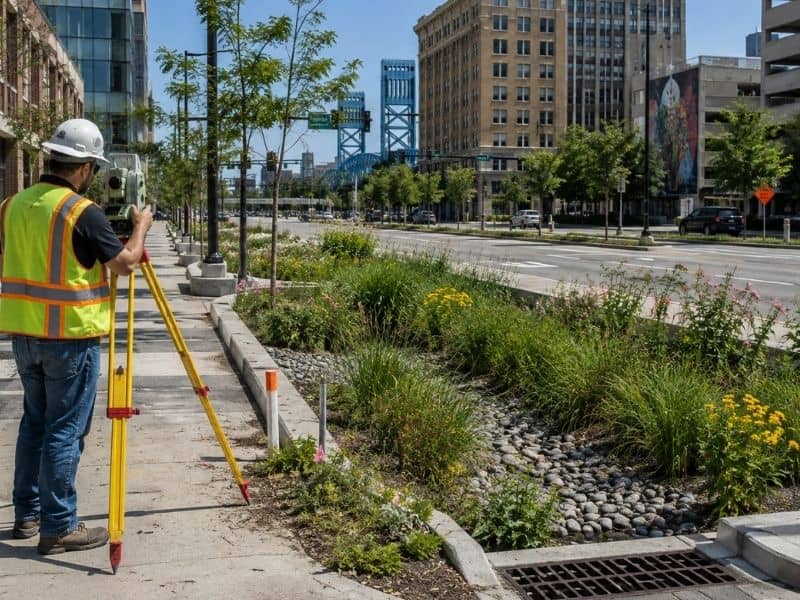

A topographic survey shows the shape of the ground. It records the highs, the lows and every slope in between. In downtown Jacksonville, that ground data matters a lot when a project team wants to add green features like rain gardens or bioswales. These features only work if water flows into them the right way. So before any planting or paving starts, the survey gives designers a clear map of what’s already there. That map keeps the new green pieces from fighting the land around them.

Mapping Existing Ground Conditions for Green Infrastructure Placement

Green infrastructure needs the right spot to sit. A rain garden placed on high ground won’t catch much water. One placed in a low, wet corner might hold too much. So the team maps the ground surface first. Topographic survey data shows each dip and rise across a downtown block. It marks the spots where water already wants to gather. Designers read that data and pick the low points that make sense for a rain garden or a planted basin. The survey also shows how much flat space sits open between buildings and streets. Downtown lots are tight, so every foot counts. Once the team knows the real shape of the ground, they can place green features where they’ll actually do their job.

Identifying Grade Transitions Around Urban Green Features

The edges of a green feature matter as much as the middle. Water has to move from a street or sidewalk into the feature, then soak in or drain out. If the grade changes too fast, water rushes past instead of soaking. If it changes too slow, water pools where it shouldn’t. Topographic survey data shows these grade changes down to small measurements. Say a bioswale sits next to a sidewalk. The survey tells the team how high the sidewalk is and how low the swale needs to be. That gap decides whether water flows in smoothly or skips over the edge. The same goes for permeable pavement that meets a curb. Vegetated areas near a road also depend on the slope leading up to them. With clear grade data, designers build gentle transitions that guide water in on purpose. Without it, the green feature and the street end up working against each other.

Surveying Existing Conditions Around Downtown Streetscapes

Downtown Jacksonville is already full of built pieces. Curbs, sidewalks, driveways and paved plazas cover most of the ground. A green feature has to fit around all of it. So the survey records where each of those fixed pieces sits. It captures the exact edge of a curb, the width of a sidewalk and the spot where a driveway breaks the curb line. It also notes the structures set into the pavement, like inlets and grates. Designers need those locations before they draw a single green feature. A rain garden can’t sit on top of an existing inlet. A bioswale can’t block a driveway that a building still uses. When the survey maps these features first, the team sees the real space they have to work with. Downtown blocks leave little room to spare, so a few inches can change the whole plan.

Using Survey Data to Coordinate Green Infrastructure With Existing Improvements

Green features never stand alone. They share space with buildings, parking, walkways and underground lines. Because of that, the design team has to line up the new work with everything already there. Topographic survey data gives them one shared picture of the site. Engineers use it to check that a planted area won’t crowd a building entrance. They use it to keep permeable pavement clear of a utility access lid. They also check that a new bioswale still leaves room for people to reach doors, ramps and parking. When each group works from the same measured site data, their plans match. One team’s green feature won’t land on another team’s pipe or path. Jacksonville follows a Low Impact Development manual for Duval County that guides how crews build these green practices. Solid survey data helps the team meet that guidance while keeping every existing improvement in place.

Supporting Downtown Flood-Control Designs With Site-Specific Measurements

Bigger flood-control projects downtown often add green features as one part of the plan. Those features only help if they match the real site. That’s where site-specific measurements come in. A topographic survey gives the team exact ground heights, edge locations and slope details for the block. With that starting point, they can fit rain gardens, swales and permeable surfaces into the larger design without guessing. The measurements also let them tie the green pieces to the existing streets and paved areas around them. Downtown Jacksonville sits along the St. Johns River, and hard pavement covers much of the core. Green features add soft, planted spots that soak up water where the pavement can’t. But they only line up right when the design starts from measured ground data. Accurate survey work gives the whole project a solid base to build on.

Frequently Asked Questions

Why is topographic survey data useful for green infrastructure improvements?

It shows the real shape of the ground before any work begins. Green features like rain gardens rely on water flowing into them, and that flow depends on the slope of the land. Survey data marks the highs and lows so designers can place each feature where it will catch and hold water.

What site features should be measured before adding green infrastructure downtown?

The team measures curbs, sidewalks, driveways and paved areas first, since a green feature has to fit around them. Drainage inlets and grates set into the pavement matter too. Building edges and access points round out the list so the plan blocks nothing.

How can ground grades affect the placement of green infrastructure?

Grades decide how water moves across a site. A grade that drops too fast sends water rushing past a rain garden, and a flat spot can leave water pooling in the wrong place. Measured grade data helps designers set each feature at a height that pulls water in the right way.

Can topographic survey data help coordinate green infrastructure with existing streets and sidewalks?

Yes. The survey records where streets, sidewalks and other fixed features sit, then designers use that data to line up the new green work with them. A smooth transition between a curb and a bioswale, for example, depends on knowing both heights ahead of time.

Why is accurate site information important for downtown flood-control projects?

Flood-control designs often add green features as one piece of a larger plan. Accurate measurements give the team a reliable starting point, so the green pieces match the real ground and connect to the streets around them. That keeps the whole design grounded in what’s actually on site.
