A plat of survey shows more than property lines and building spots. Sometimes it shows an old alley or lane that no one in the neighborhood remembers. This can come up during a construction survey too, when a surveyor checks the land before new work starts. Many blocks were platted decades ago, back when small lanes gave homes access to the back of a lot. Some of those lanes are still marked on paper, even though the pavement is long gone.

When an Older Plat of Survey Shows a Lane That No Longer Exists

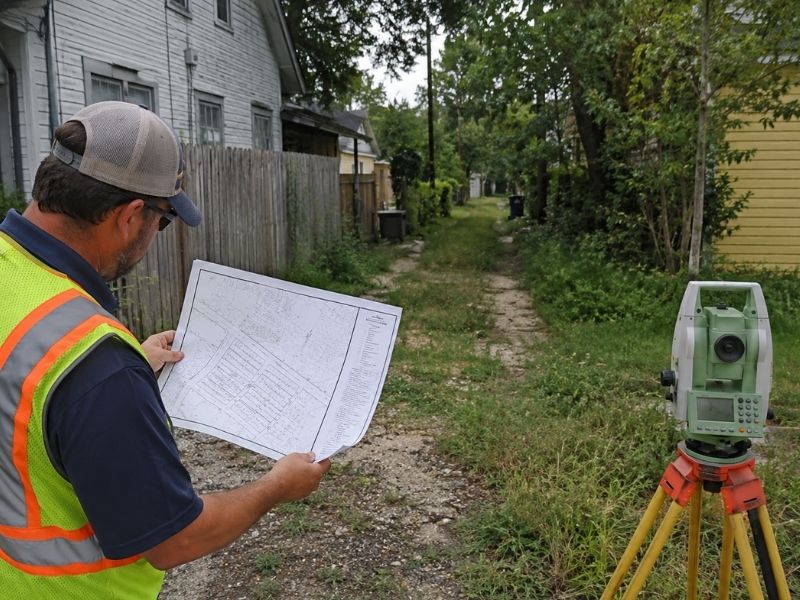

Old plats sometimes show a strip of land marked as an alley or lane, even when nothing is there today. Maybe it’s covered in grass. Maybe a fence sits right on top of it. Maybe a shed was built years ago without anyone checking the plat first.

Here’s the tricky part. The lane being gone doesn’t tell you why it’s gone. It could have been closed off the right way, through a formal process. It could have been moved to another part of the block. Or it could have just stopped being used, with no paperwork filed at all.

A surveyor’s job is to show what the plat says and compare that to what’s actually on the ground today. Figuring out the legal reason behind the gap is a separate step, and it often takes more digging.

Comparing the Plat With Older Property Records

Once a lane shows up on a plat, the next move is to look backward. A surveyor can pull older plats for the same block and line them up against the current one. Deeds from past owners often mention access ways too, sometimes in a single sentence buried in the legal description.

This isn’t about redrawing every property line in the area. It’s about tracing one specific feature, the lane itself, through time. When did it first appear on record? Did later plats still show it? Did any document ever mention it being closed or shifted?

Older counties in Florida kept records in different formats over the years, so this kind of research can take patience. Some records are typed. Some are handwritten. Some only exist on microfilm at the courthouse.

What an Unrecorded Alley Can Mean for a Property Owner

Discovering a lane you didn’t know about can feel unsettling, but it doesn’t automatically change what you own. Still, it opens up a few practical questions worth asking.

Does the lane cross through part of your usable yard? Could it affect where a fence, a garage, or an addition gets built? Does it touch on how another property owner reaches their own lot?

None of these questions get answered just by the lane showing up on a survey. The plat tells you the feature exists on paper. It doesn’t decide who has rights to use it, or whether those rights still apply today. That part depends on records outside the survey itself.

Why Older Urban Blocks Can Contain Unexpected Survey Features

Jacksonville has neighborhoods that go back many decades, and city blocks from that era were often laid out differently than they are today. Small lanes behind homes were common. They gave delivery access, room for outbuildings, or a shortcut between streets.

Over time, cities changed how blocks were used. Lanes got paved over, absorbed into yards, or replaced by new street layouts as development moved forward. None of that erases the original plat. It just means the paper record and the current street pattern can drift apart.

When a Survey Finding Needs Further Record Research

Not every old lane needs a deep investigation. But a few situations call for a closer look before moving forward with a purchase, a build, or a major renovation.

If the lane runs close to where new construction is planned, it’s worth checking further. If a neighboring property seems to rely on that lane for access, that’s another sign to dig deeper. And if the plat and the current deed disagree on the details, that gap deserves attention too.

A surveyor can document what’s physically there and what the records show. Sorting out who holds legal rights to that lane, though, usually falls to a title company or a real estate attorney. Each role covers a different part of the puzzle, and both matter when an unusual feature like this turns up.

Frequently Asked Questions

Does a plat of survey prove that an old alley is legally active?

No. The plat shows what the surveyor found and what earlier records depicted. Whether the lane is still legally active is a separate question that usually needs title or legal research to answer.

Why might an alley appear on an old plat but not exist today?

Neighborhoods change. Roads get rerouted, lots get combined or split, and access needs shift as areas develop. A lane can stop being used long before any record officially closes it out.

Can an unrecorded lane affect the use of my property?

It might raise questions about access or how your lot is laid out, but the actual effect depends on what the records show and the specific situation involved.

Should I investigate an old alley before buying a property?

It’s a reasonable step, especially if you’re planning construction or an addition. Buyers often ask for a closer review of unusual survey findings before closing, so there are no surprises later.

Who can determine what rights exist over an old alley?

A surveyor documents the physical and record evidence found during the survey. A title company or attorney is who typically determines ownership, easement rights, or other legal questions tied to that evidence.
